Bunched Paperinsulated Conductors series

Product Introduction

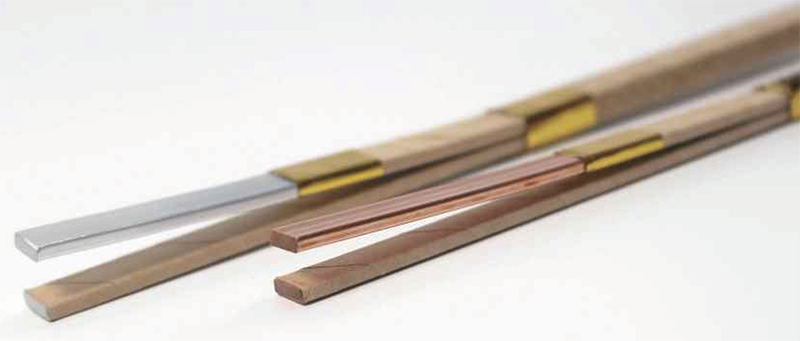

A composite wire is a winding wire composed of several copper/aluminum flat wires arranged according to specified requirements and wrapped with specific insulation materials.

Mainly used for windings of oil immersed transformers, reactors, and other electrical devices.

Budweiser Electric produces copper and aluminum conductor paper wrapped wires and composite wires, with moderate winding tightness and a continuous length of over 8000 meters without joints

Range

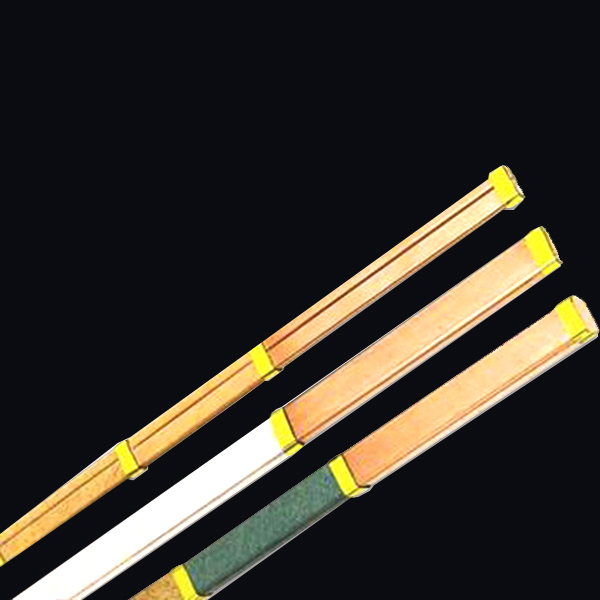

Bare flat wire composite conductor

Paper wrapped wire combination conductor

Enameled wire combination conductor

Film wrapped wire combination conductor

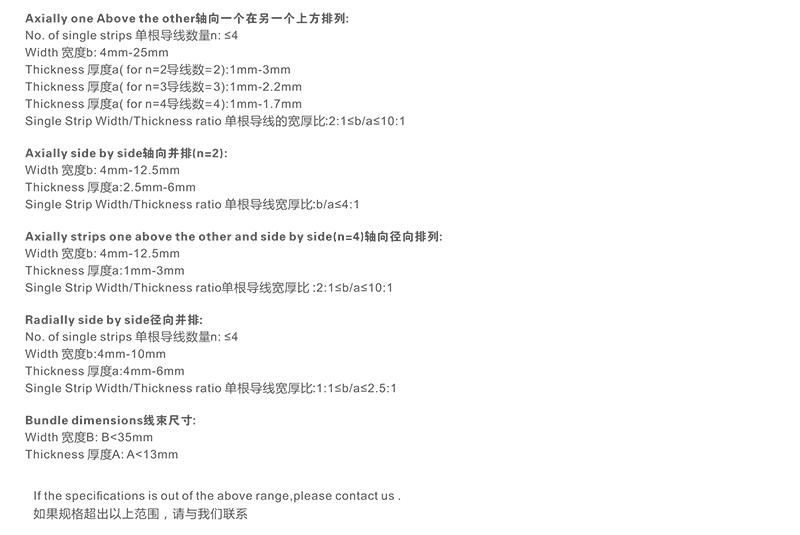

production range

Recommended flat wire conductor size: Thickness: 1.00～12.00 mm; Width: 3.00-25.00 mm width to thickness ratio: ≤ twenty

Section 200mm 2;

Recommended circular conductor size: diameter 2.00-5.00 mm;

Specification of enameled paper wrapped wire and enameled composite wire conductor;

Recommended flat wire conductor size: thickness 1.00-3.00 mm; Width 5.00-18.00 mm;

Recommended circular conductor size: diameter 2.00-5.00 mm;

Specification of conductors for bare wire, paper wrapped, and film wrapped composite wires;

Recommended conductor size: thickness 1.00-6.00 mm; Width 4.00-20.00 mm, width to thickness ratio ≤ 20; Cross section of 150 mm 2.
